New GM 2500HD 6-8″ Lift Kit from CST Suspension

2011 GM 2500HD 2WD / 4WD - 6-8" LIFT KIT

CST has been the leader in Chevy lift kits for over a decade and we will not fall short on the brand new suspension lift kits we design for the 2011 Chevy / GMC 2500 HD | 3500 trucks. CST builds the best suspension systems available on today’s market, and we have yet again stepped up to conquer the massive suspension on the 2011 Silverado HD trucks. GM built the new HD suspension to be extremely heavy duty so that it matched up with the added horse power, towing capacity, and over all weight of the vehicle. We incorporated our extensive knowledge of off road and trophy truck quality technology and can insure you that your suspension will have increased strength, performance overall integrity, and perform better than stock. Throughout the initial design and R&D process we made sure to retain the factory oem suspension geometry and design attributes, and not change it like some of the other guys.

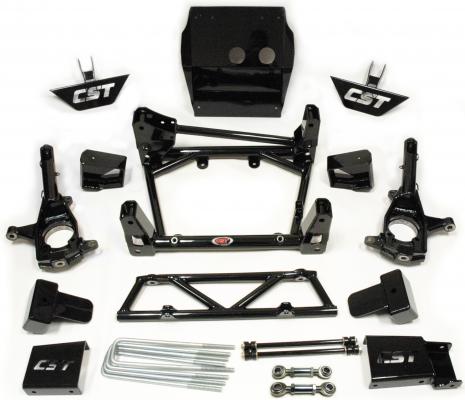

Our standard 6-8″ adjustable kit in the front end includes our 1 piece gusseted sub-frame w/ steel full size differential skid plate, fabricated steel / CNC machined front steering knuckles, high strength steering drop center link w/ heim jointed support links to minimize wear of factory idler and pitman arms, differential drop brackets, heavy duty bump stop brackets, extended sway bar end links, brake line drop brackets, CST laser cut torsion drop brackets, all necessary hardware, and front stock shock extension. Steering stabilizer brackets are built into the kit and our stabilizer shock kit can be purchased as an option. In the rear the kit includes a fabricated 4″ lift block with bump stop pad and heavy duty 3/4″ u-bolts. Extended length rear shocks are required and are available in our CST Performance line of shocks.

No cutting of the front differential is required or welding of any kind. Our 6-8″ lift kit retains the factory front wheel track width and has zero compatibility issues with the GM Stabilitrak system.

Recommended Tire and Wheel Specs:
(Factory OEM wheels and tires will work with the lift kit installed)

Wheels for use with over sized tires –
17 x 8″ or 9″ w/ 5 1/4″ BS
18 x 9″ w/ 5 1/4″ BS
20 x 9″ or 10″ w/ 5 3/4″ BS
(some higher offset wheels may work….test fitment required)

Tire sizes for use on factory oem 20″ or aftermarket wheels
35 x 12.50 (no trimming required at 6.5″ of lift)
37 x 12.50 or 13.50 (minor trimming required – must be set to 8″ of lift)

This kit will again keep CST on top of the competition, with our superior design and quality you have always come to expect. Be sure to check back as we will be releasing lots of kit options in the coming months like strut bars, steering stabilizer shock kit, upgraded CST performance 2.5″ rebuildable front and rear shocks, dual shock system, brackets to keep the torsion bars in the factory position, 9-11″ lift kit, and much more.

Pre -orders are being accepted so contact your preferred dealer or give us a call and we will direct you to a distributor that has placed a stocking pre-order so you can be the first on your block with a CST Performance Suspension for you new HD truck!
