Livorsi’s Data Gateway

CC | August 15, 2011

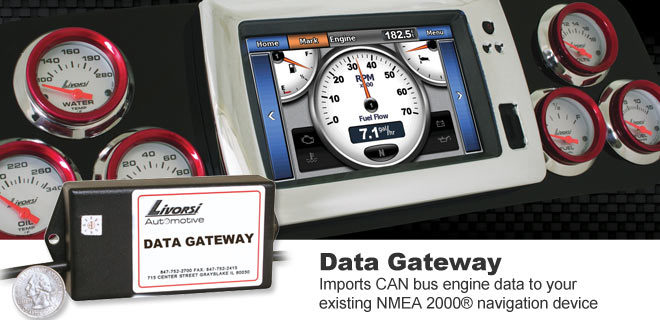

With the new engine ECM (Engine Control Module) Data Gateway you can bring CAN (Controller Area Network) bus engine data to your existing NMEA 2000® navigation device.

The engine info that displays is the same data that your engine builder or tuner can pull up on their laptops using advanced software. Livorsi’s Data Gateway simply plugs into your navigation unit between the display and the GPS antenna using a standard NMEA 2000® T connector. On the engine side it will interface either by the CAN+ / CAN- wires or by using the diagnostic port on your engine. This device is available for J1939, MEFI4A, MEFI4B, MEFI5, MEFI6 and the MoTeC M800 ECM.

The Data Gateway will convert your navigation screen into a digital dash board displaying real time engine data and fault codes. Livorsi’s optional rigging kit includes a power cord and tee fittings to connect the Data Gateway to your instrument network.

Not sure if your navigation unit is NMEA 2000® compatible? Email us your make and model number and we will let you know. Please send an email to tomv@compx.com

Displays and Gauges

Livorsi offers the rugged Garmin GPSMAP® 740, a 7” touch screen unit, that when combined with the Data Gateway, transforms the navigation screen into a digital dash. View real time Data and fault codes; and with the help of user programmable warnings, you’ll be alerted of any potential issues before they become serious problems.

Garmin’s high resolution touch screen lets you navigate the Garmin interface with minimal effort. Garmin touch screens are also available in 8” and 12” units. Decorative powder coat bezels available for all three sizes.

Vantage View are digital CAN gauges capable of displaying data for MEFI, SAE J1939, Indmar, NMEA 2000® and Smartcraft® compatible engines. Our Mega and Race Series are precision analog gauges featuring bold graphics and stylish rims. Plug-in Deutch connectors make Livorsi gauge installation quick and painless.

Data Gateway
Part Number: MEFI4G
List Price: $459.00

Rigging Kit
Part Number: MEFI4RK
List Price: $109.00

For more information or to view the entire line of Livorsi products, visit: www.livorsi.com
